Commercial & Industrial ESS | Containerized Energy Storage System (10ft / 20ft / 40ft)

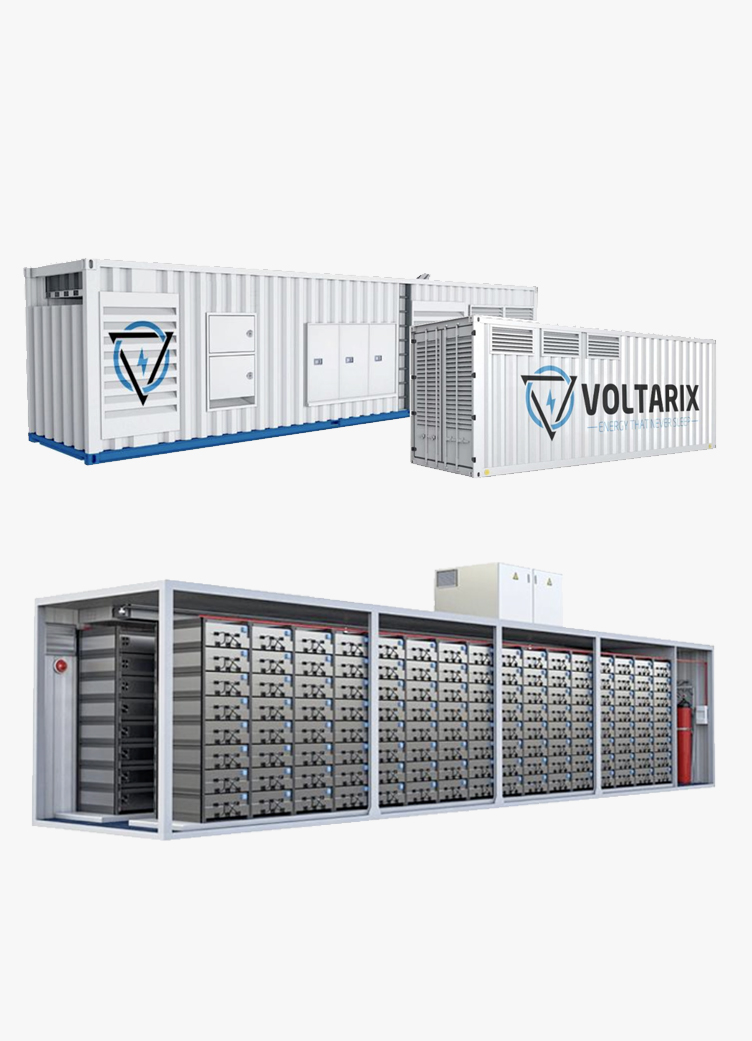

Containerized Energy Storage System (10ft / 20ft / 40ft)

The containerized energy storage solution integrates all essential components within a single, transportable container unit. Each system combines a Battery Energy Storage System (BESS), bidirectional Power Conversion System (PCS), DC Power Distribution System (PDS), microgrid Switching System (STS), Energy Management System (EMS), auxiliary power distribution, air conditioning, and fire protection system providing a fully integrated, safe, and flexible plug-and-play energy solution.

Technicals:

Parameter 10 ft 20 ft 40 ft
Output voltage 380/400 ± 15% V 380/400 ± 15% V 380/400 ± 15% V
Grid frequency 50 / 60 (±2.5) Hz 50 / 60 (±2.5) Hz 50 / 60 (±2.5) Hz
Output power 50 ~ 100 kW 50 ~ 500 kW 250 ~ 630 kW
Battery capacity 50 ~ 400 kWh 200 ~ 1500 kWh 800 ~ 3000 kWh
Battery Type Lithium iron phosphate Lithium iron phosphate Lithium iron phosphate
Dimensions (D × W × H) — Inner 2831 × 2352 × 2385 mm 2352 × 5898 × 2385 mm 2352 × 12032 × 2385 mm
Dimensions (D × W × H) — Outer 2438 × 2991 × 2591 mm 2438 × 6058 × 2591 mm 2438 × 12192 × 2591 mm
Protection level IP54 IP54 IP54
Humidity range 0 ~ 95% RH 0 ~ 95% RH 0 ~ 95% RH
Altitude 3000 m 3000 m 3000 m
Operating temperature –20 ~ 50 ℃ –20 ~ 50 ℃ –20 ~ 50 ℃
Battery voltage range 250 ~ 850 V 250 ~ 850 V 250 ~ 850 V
Maximum DC current 200 A 750 A 1500 A
Connection method 3P4W 3P4W 3P4W
Power factor –1 ~ 1 –1 ~ 1 –1 ~ 1
Communication method RS485, CAN, Ethernet RS485, CAN, Ethernet RS485, CAN, Ethernet
Isolation method Power frequency isolation Power frequency isolation Power frequency isolation

Key Features:

  • Flexible configuration — battery type and capacity can be customized to meet specific customer requirements.
  • Dual operation modes — supports both on-grid and off-grid functionality with seamless switching and black start capability.
  • Smart EMS management — enables unattended operation, local control, and cloud-based monitoring with highly customizable features.
  • Versatile operation modes — includes peak shaving, valley filling, demand response, anti-reverse power flow, backup power supply, and command response functions.
  • Comprehensive access control — allows both remote management and on-site operation for enhanced safety and convenience.
