Residential ESS / DC Generator | Wheel Type Lithium Battery

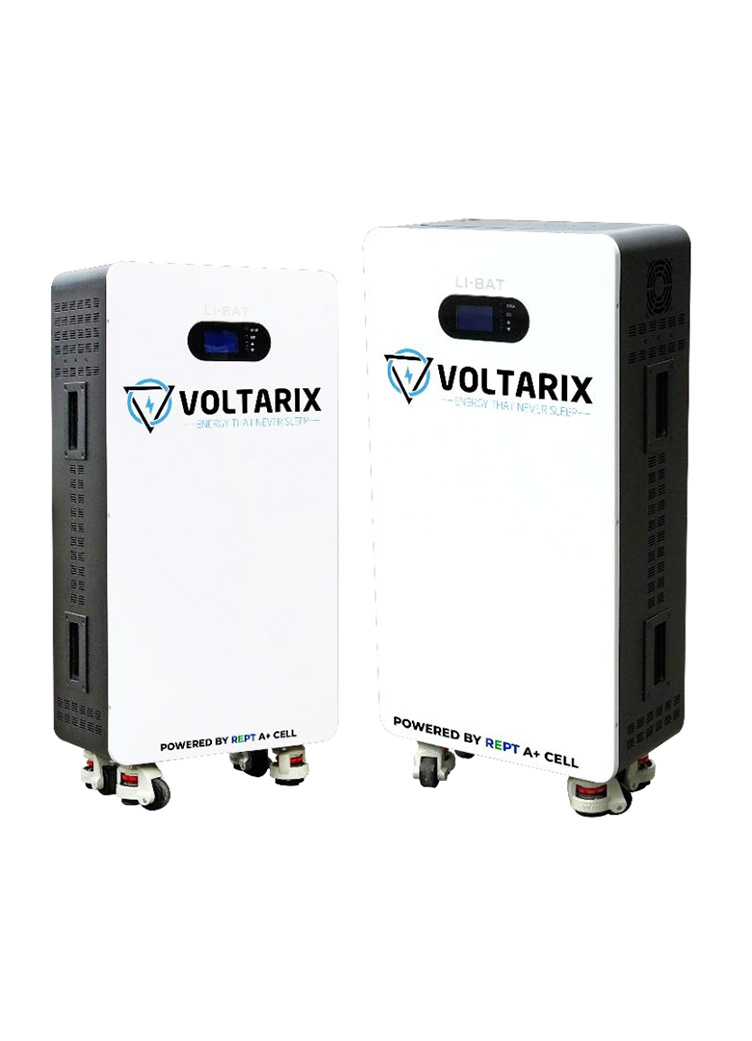

Wheel Type Lithium Battery

built with top-grade A LiFePO₄ cells, this battery system is designed for over 10 years of reliable performance. Its user-friendly design ensures easy installation, operation, and maintenance — ideal for modern home energy storage applications.

Equipped with advanced protection features:

  1. Over-temperature alarm and safety shutdown
  2. Overcharge and over-discharge protection
  3. Short-circuit protection for enhanced reliability
  4. Seamless integration with UPS systems, solar power generation, and other main energy equipment

Technicals:

Model

VLX-W

48-280L

48-330L

48-560L

48-600L

51.2-280L

51.2-300L

51.2-560L

51.2-600L

Nominal voltage

48V

51.2V

Cell specification

280Ah

300Ah

314Ah

280Ah

300Ah

314Ah

280Ah

300Ah

314Ah

280Ah

300Ah

314Ah

Nominal capacity

280Ah

300Ah

560Ah

600Ah

280Ah

300Ah

560Ah

600Ah

Working volt range

42～54.75V

44.8～58.4V

Recommended charging volt

51.75V

55.2V

Recommended discharging

cut-off volt

45V

48V

Standard charging/

Discharging current

100A

Maximum continuous

charging/discharging current

150A

200A

150A

200A

Proper temperature

-30～60℃(Recommended 10～35)

Allowable humidity range

＜85%RH

Storage temperature

-20～65℃(Recommended 10～35)

Charging temperature

0～50℃

Discharging temperature

-10～60℃

Protection level

IP20

Cooling method

Natural air cooling

Maximum size

(D*W*H)

248*680*880mm

890*350*1060mm

248*680*880mm

890*350*1060mm

Net weight

136.5kg

144kg

280kg

295kg

139kg

147kg

284kg

300kg

Key Features:

  • Long-cycle durability — Rechargeable lithium system with over 5000 deep charge–discharge cycles for extended lifetime.
  • Premium performance — Built with A+ grade cells ensuring superior quality, stability, and efficiency.
  • Simple setup — Easy installation and maintenance for quick deployment and reliable operation.
  • Eco-friendly design — Energy-efficient and environmentally responsible technology supporting sustainable energy use.
  • Reliable protection — Rated IP20, offering safe and stable performance for indoor applications.
  • Smart management — Integrated Battery Management System (BMS) for real-time monitoring and protection.
  • Flexible customization — Supports OEM and ODM configurations to meet diverse project requirements.
