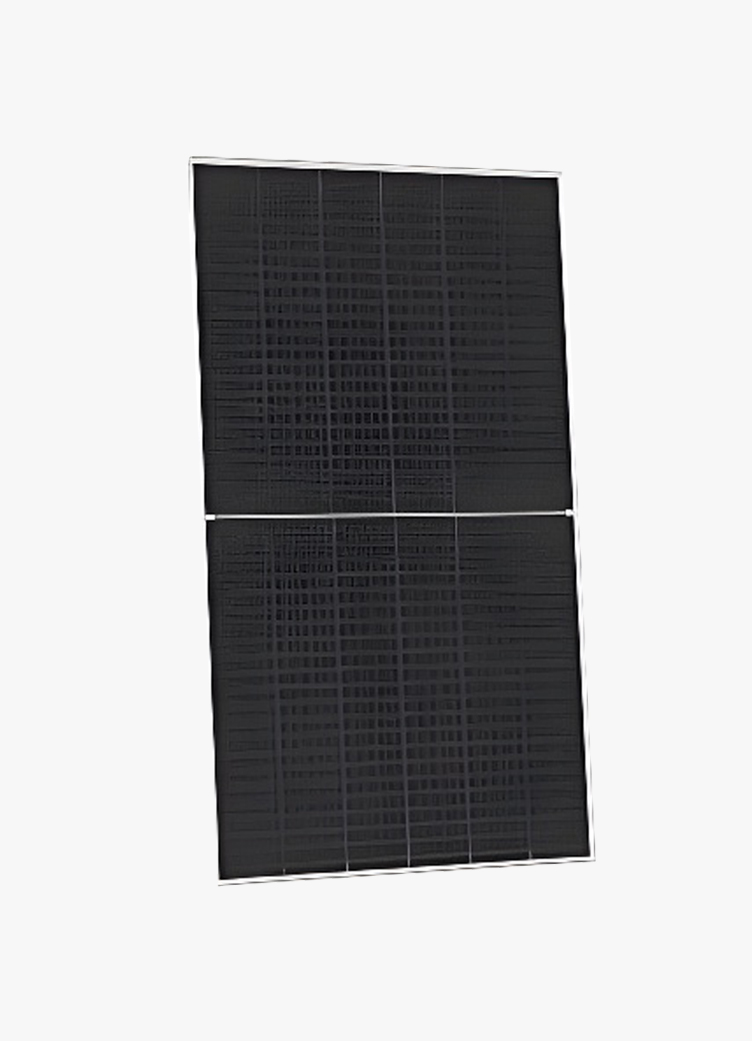

VoltARIX Solar Modules

integrate world-class JinkoSolar N-Type TOPCon technology to deliver unmatched efficiency, reliability, and durability for both residential and commercial applications.

With output capacities ranging from 495 W to 670 W, our panels provide superior energy yield, minimal degradation, and long-term stability under extreme environmental conditions.

Available in mono-facial dual glass and bifacial configurations, VoltARIX modules are designed to seamlessly integrate with our battery storage systems and hybrid inverters, providing a complete, high-performance clean energy solution.

Technicals:

Model 51QL6-DV 66QL6-BDV
Power Range (Pmax) 495 W – 520 W 650 W – 670 W
Cell Type N-Type TOPCon Mono-Crystalline N-Type TOPCon Bifacial
Module Type Mono-Facial Dual Glass Bifacial Dual Glass
Module Efficiency Up to 21.3 % Up to 22.5 %
Bifaciality Factor — 85 ± 5 %
Temperature Coefficient (Pmax) –0.29 %/°C –0.29 %/°C
Operating Temperature Range –40 °C to +85 °C –40 °C to +85 °C
Max. System Voltage DC 1500 V DC 1500 V
Load Rating 5400 Pa (front), 2400 Pa (rear) 5400 Pa (front), 2400 Pa (rear)
Warranty 15 Years Product / 30 Years Power 12 Years Product / 30 Years Power
Certifications IEC 61215 / IEC 61730 / ISO 9001 / ISO 14001 IEC 61215 / IEC 61730 / ISO 9001 / ISO 45001

Grid Module
Rated Input Voltage 220/230Vac
Input Voltage Range (170Vac~280Vac) ±2% (90Vac-280Vac)±2%
Frequency 50Hz/ 60Hz (Automatically detects)
Frequency Range 47±0.3Hz ~ 55±0.3Hz (50Hz); 57±0.3Hz ~ 65±0.3Hz (60Hz);
Overload/Short Circuit Protection disconnect
Efficiency >95%
Transfer Time (Bypass and Inverter) 10ms (Typical value)
AC Backfill Protection YES
Maximum Bypass Overload Current 40A

Inverter Module
Output Voltage Waveform pure sine wave
Rated Output Power 5000 (VA)
Power Factor 1
Rated Output Voltage 230Vac
Output Voltage Error ±5%
Output Ffrequency Rrange 50Hz ± 0.3Hz 60Hz ± 0.3Hz
Efficiency >92%
Overload Protection (102%< load <125%) ± 10%: report an error and shut down the output after 5 minutes;  (125%< load <150%) ± 10%: report an error and shut down the output after 10 seconds;  Load >150% ±10%: report an error and shut down the output after 5 seconds;
Peak Power 10000VA
On-load Motor Capacity 4HP
Output Short Circuit Protection breaker
Bypass Breaker Specifications 40A
Battery Voltage Range 40.0Vdc~60Vdc ± 0.6Vdc (Under-voltage alarm / shutdown voltage / the over-voltage alarm/ over-voltagerenew…LCD Screen can be set)
Power Saving Mode load≤50W

Key Features:

  • Advanced N-Type TOPCon Technology: Higher conversion efficiency, lower LID/LeTID, and improved long-term stability.
  • High Power Output: Ranging from 495 W to 670 W, enabling greater energy generation per unit area.
  • Bifacial Energy Gain (for 66QL6-BDV): Up to 85 ± 5 % bifaciality, producing additional rear-side energy and higher yield.
  • Dual Glass Design: Enhanced durability, improved PID resistance, and better protection against microcracks and humidity.
  • Optimized Temperature Coefficient: Excellent heat resistance for consistent performance in hot climates.
  • Proven Low-Light Performance: Superior energy capture in early morning, late evening, or cloudy conditions.
  • Mechanical Load Strength: Certified to withstand 5,400 Pa front and 2,400 Pa rear static loads.
  • Long-Term Warranty:
  • 15-Year Product Warranty (Mono-facial) / 12-Year Product Warranty (Bifacial)
  • 30-Year Linear Power Warranty with < 0.35 % annual degradation.
  • System Compatibility: Fully compatible with VoltARIX hybrid and on-grid inverters, ensuring maximum system efficiency.
