Commercial & Industrial ESS | High Voltage Rack type Energy Storage System

Commercial & Industrial Energy Storage Battery System 96v-384v & 480V–768V

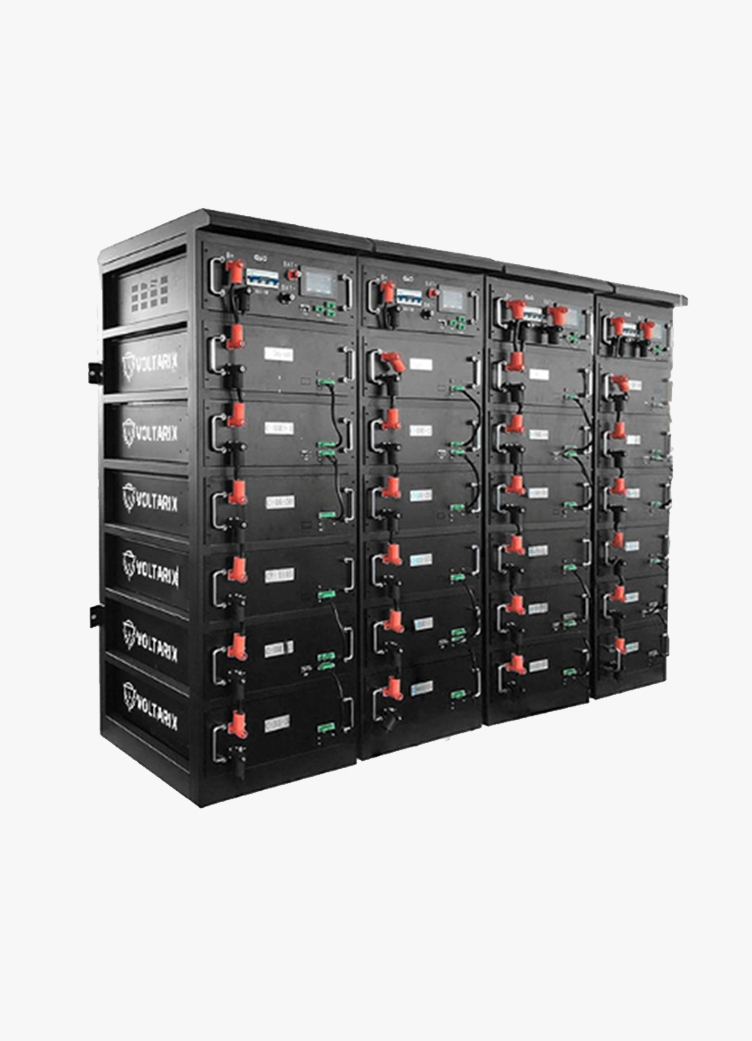

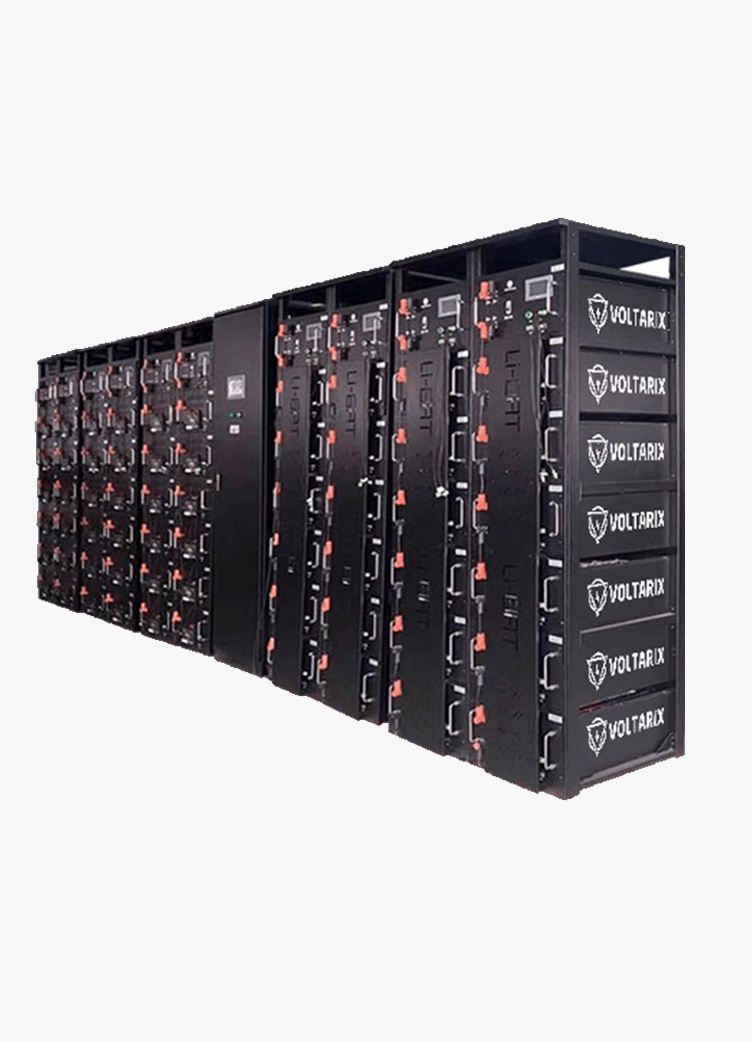

The VLXC-H2 series is a high-voltage (96- 384V DC & 480–768V DC), large-capacity LiFePO₄ battery system designed for advanced commercial and industrial applications. Featuring a modular and scalable design, it enables quick installation, one-button operation, and intuitive monitoring through touchscreens on each battery rack. Fully compatible with UPS systems, solar inverters, and other key power equipment, the VLXCI-H2 supports diverse communication interfaces such as CAN, RS485, and dry contacts for remote management. Equipped with high-safety LiFePO₄ cells and an intelligent BMS, it ensures exceptional reliability, efficiency, and stable performance even under challenging environmental conditions.

Technicals:

Lithium Battery Pack Parameters Tables

Model

Cell Type

Nominal Energy

Nominal Capacity

Nominal Voltage

Operating Voltage Range

Working Temperature

Prot.

Reference Weight

Reference Size (D×W×H) mm

VLXCI-9650

52Ah

5kWh

52Ah

96VDC

87–106.5VDC

-20–65℃

IP20

47.1kg

630×475×162

VLXCI48100

100Ah

4.8kWh

100Ah

48VDC

43.5–53.2VDC

-20–65℃

IP20

86.6kg

640×510×252

VLXCI32150

156Ah

4kWh

156Ah

32VDC

29–35.5VDC

-20–65℃

IP20

153kg

510×904×252

VLXCI96100

100Ah

9.6kWh

100Ah

96VDC

87–106.5VDC

-20–65℃

IP20

–

–

VLXCI48200

200Ah

9.6kWh

200Ah

48VDC

43.5–53.2VDC

-20–65℃

IP20

–

–

VLXCI32300

300Ah

9.6kWh

300Ah

32VDC

29–35.5VDC

-20–65℃

IP20

–

–

VLXCI48300

300Ah

14.4kWh

300Ah

48VDC

43.5–53.2VDC

-20–65℃

IP20

–

–

Lithium Battery Cluster Voltage Platform Parameter Table

Model

Nominal Voltage

Nominal Capacity

Operating Voltage Range

Recommended Charge/Discharge Current

VLXCI96100/200/300

96V

100/200/300Ah



87–106.5VDC

50/100/150A



VLXCI192100/200/300

192V

174–213VDC

VLXCI220100/200/300

220V

200–245VDC

VLXCI288100/200/300

288V

260–319.5VDC

VLXCI360100/200/300

360V

325–400VDC

VLXCI384100/200/300

384V

348–426VDC

VLXCI480100/200/300

480V

435–532VDC

VLXCI512100/200/300

512V

464–568VDC

VLXCI576100/200/300

576V

522–639VDC

VLXCI672100/200/300

672V

609–745.5VDC

VLXCI768100/200/300

768V

696–852VDC

Key Features:

  • Modular architecture with automatic ID recognition for optimized installation space.
  • One-touch power control enables simple installation, easy operation, and effortless maintenance.
  • Integrated touch screen on each battery cluster provides a clear, real-time display of system status.
  • High compatibility, allowing seamless integration with UPS systems, solar PV generation, and other major equipment.
  • Versatile communication options — including CAN, RS485, and dry contact — ensuring compatibility with various inverters and supporting customized interfaces for remote system monitoring.
